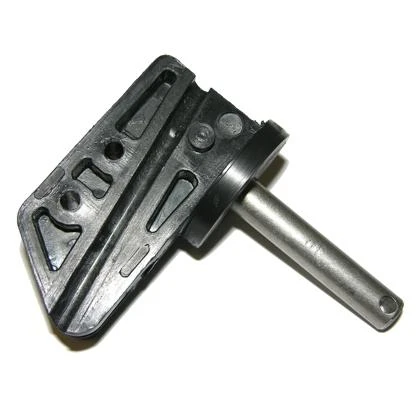

WS 2-Screw Rudder Pin And Block

Use as a replacement part for the central pin and black plastic center of a Wilderness Systems rudder assembly. Assumed to be compatible with Wilderness Systems rudders, circa 2000-2008. Over all height is 3 7/16 inches, pin is 1 15/16 inches. Pin Length, from bottom of block to rudder pin hole is 1 5/8 inches. The depth of the rudder bracket should not exceed this measurement. A single hole is drilled (for a rudder pin ring) on the end of the 3/8 in. diameter pin. Two 3/16 in. holes (5/8 on center), for Hex Bolts and Lock Nuts, and several slots are molded into the black plastic block. Block is approximately 2 5/8 long by 1 1/4 high by 3/4 inches thick. Please note that you will have to disassemble your rudder and reassemble it without instructions, but it is fairly simple to do. May not fit older Wilderness Systems 1990s models. (Alternative part number 7715-0204)RBAP
