Surf Dog 2.0 Fin Set INFO

This is a discontinued fin kit left here for your reference. You cannot purchase this discontinued fin kit.

If you need Surf Dog 2.0 fins please buy Flyer Fins. The Surf Dog and Flyer Fins are the same shape and size. Flyer Fins will need modification. Cut off the base, the section that fits in the fin slot with a saw (table saw may be best). Drill out holes in the fin for stainless sheet metal screws (get at hardware store). Apply the modified fin to the mounting plate (shown in the photos above). Secure the fin and mounting plate assembly to the bottom of the kayak hull in the recess that is molded there for that purpose.

This was a twin fin set for the Dagger Crazy-88 and Kingpin–Icon sit-in-side whitewater surf kayaks. Best used as replacement parts, or to add fins to the Dagger Crazy 88 or Kingpin Icon kayaks. Fins were 5 1/4 inches by 2 1/8 inches. Fins can be adjusted forward and aft by small increments. Your kayak must have 2 fin boxes molded into the hull of your kayak (7 7/8 x 3/4 in.) and each box must be equipped with two screws and screw holes (6.74 inches on center).

Each fin (aka skeg) bolts onto the 4-hole fin plate with two of the screws. Each skeg assembly bolts onto the hull of the kayak with 2 machine screws (not included) taken from the hull of your kayak, or from a hardware store.

Cover plates do not have screw holes for the fins (shown in photo above). Optional cover plates are used when fins are not wanted on the hull to fill the recess. They are also called Fin Box Covers and have only 2 holes. The cover plates can be transformed into fin plates. Fin Plates with multiple holes can be used as cover plates. This type of skeg might also be common on kite boards and wake boards.

Cover plates and Fin Plates were 7 7/8 inches long, 3/4 inches wide and 1/4 inch thick, made of black plastic. Cover plates or Fin Plates can be fabricated with SeaBoard. Use this link to purchase a sheet of Seaboard High Density Polyethylene Sheet, Matte Finish, 1/4 in. Thick, 12 in. Length x 36 in. Width, Black.

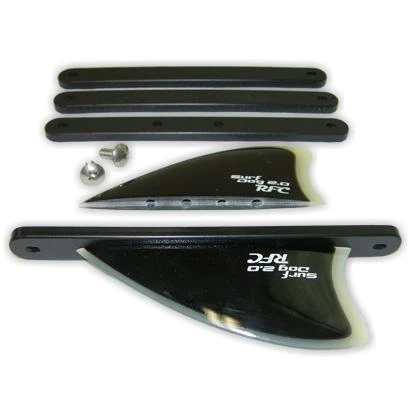

Original Kit Contents:
2 Surf Dog 2.0 Fins (w/ 4 pre-drilled holes)
4 Phillips head machine screws (fastens the fins to the fin plates)
2 Fin Plates, 4 holes (fins bolt onto plates, then plates screw onto hull)
2 Cover Plates, 2 holes (fills the recess molded into the hull bottom, secures with 2 screws)

This set is Also Known As:
Rainbow Surf Dog Fins, onyx, 9810063
Crazy 88 Fin Set, black, 8025410
Crazy 88 Fin Set, 9800242

Color of the Surf Dog Fins was typically Black, but variable shades and colors were not uncommon.
