Necky Seat Frame

Replacement seat cradle for Necky touring kayaks, circa first decade of the 21st century. This frame was used with the discontinued Necky Touring Seat Pad Kit. This frame, in combination with the Foam Touring Seat and-or some close cell foam, may be used as a replacement seat assembly in Necky touring kayak models and possibly other brands of sea touring kayaks. The seat frame should be padded with thin close cell foam underneath to protect the hull from the aluminum frame, this foam padding may or may not be included with the seat frame. Photo shows an approximation of the frame, large holes or slots may, or may not, be present. Different frames will have different features, all frames are rather similar.

Current available options are down to Only One. Out of stock models not be available for purchase in menu. Use the menu to select.

Chatham 16 kayak seat frame, part number 07.3090.0000. Dims: 19 x 8 x 5 inches, seat screws fit into a slot on the upper surface each side. The Chatham 16 kayak seat frame has two large circle cut-outs similar to photo shown with a small center slot. It is assumed that this frame will fit all Necky Chatham 16 kayaks as well as some sea touring kayaks approximately 22 inches wide.

Alternative frame size information:

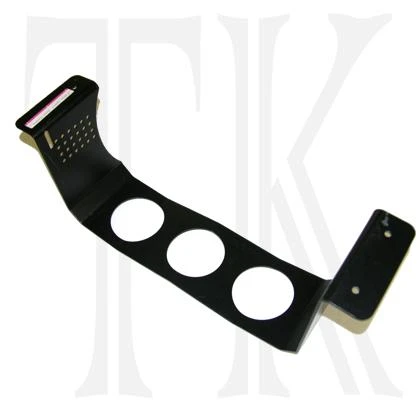

Elaho Sport kayak seat frame (photo shows this frame). Dims: 20.75 x 7.5 x 5 inches, frame was stamped ELAHO SC. Original part number is unknown. This frame is discontinued, no longer in stock.

Elias – Eliza kayak seat frame, part number 07.3002.4200. Dims: 22.5 x 7.5 x 4 inches, Sides are VERY flexible (in and out). Seat screw bolt holes are 3 inches on center two per side, frame is not marked with a model name. The Elias-Eliza kayak seat frame does not have the large circle cut-outs as shown in the photo. It is assumed that this frame will fit sea touring kayaks approximately 21 to 24 inches wide. This frame is discontinued, no longer in stock.

Info for alternative Necky Kayak Seat Frames (about 4-6 versions), fitted to other Necky touring kayak models, is currently not available online, contact us as needed. All seat frames are more or less the same with slightly different dims. Price can vary widely. Fit information cannot be verified for applications to kayak models that the frame is not made for. Ultimately a test fit will be required for the use of non-original parts. NECKOUT SEAASSY
